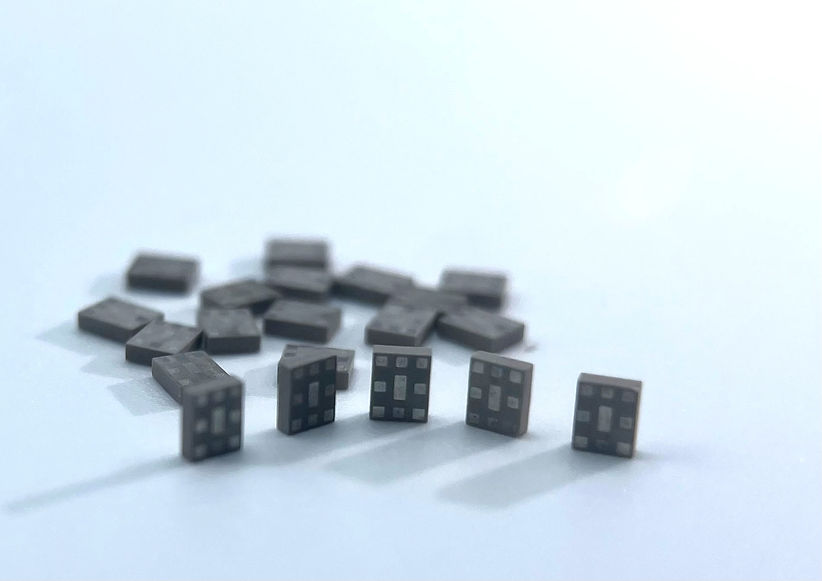

Triplexer

New
WGTP-25201125A1T
1-1280
1.8 Max
17 Min
20 Min
1550-1700
1.8 Max
15 Min
25 Min
2400-2500
1.8 Max
20 Min
20 Min
2.5X2.0X0.75
L x W x H
Size (mm3 )
Low - Band Port
Part Number
Pass Band
(MHz)
Insertion Loss
(dB)
1550-1700 MHz
2400-2500 MHz
Rejection Loss (dB)
Pass Band
(MHz)
Insertion Loss
(dB)
1-1280 MHz
2400-2500 MHz
Rejection Loss (dB)
Mid - Band Port
Pass Band
(MHz)
Insertion Loss
(dB)
1-1280 MHz
1550-1700 MHz
Rejection Loss (dB)
High - Band Port
